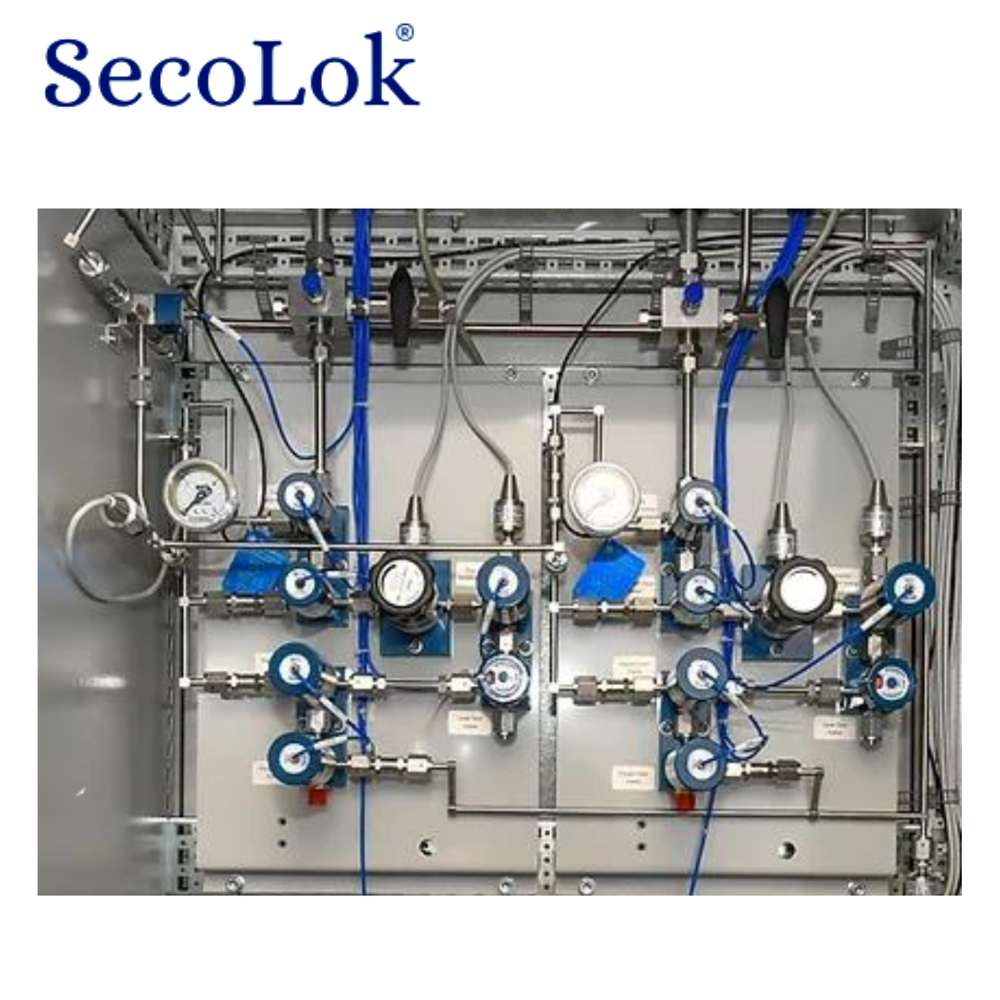

A SecoLok changeover gas manifold typically has two inlet ports—one for each gas source—and one outlet port connected to the downstream gas system. A valve controls which gas source is supplying gas to the outlet.
To switch sources, the valve is turned to the desired inlet port. This closes the previous gas source and opens the new one, with no interruption to the gas flow during changeover.
SecoLok gas panels are used in a wide range of industries including food and beverage, pharmaceutical, and chemical sectors. Common applications include:
| Feature | Details |
|---|---|
| Manual Source Switching | Effortlessly switch between gas sources via manual valve actuation. |
| Regulator and Valves | Uses Hastelloy/Elgiloy diaphragm systems for purity and leak prevention. |
| Compact Design | Space-efficient and easy to install. |
| Precise Pressure Adjustment | Provides accurate control of gas pressure settings. |
| Compliance | Valves conform to EN ISO 10297:2015 and ISO 7291 (including O2 ignition testing). |
| Safety Features | Includes delivery-side relief valve and process gas purge valve. |
| Optional Features | Shut-off valve at outlet, safety valve at outlet, and check valve at inlet available. |
| Electrostatic Chargeability | Tested for electrostatic discharge safety. |
| Explosion-Proof Certification | Certified for Ex-Zones 1 and 2 with risk groups I, IIA, IIB, and IIC. Meets DIN EN ISO 80079-36, IEC TS 60079-32-1, and TRGS 727. |
| Special Features |
|
| Technical Data |
|
Note: SecoLok Changeover Manifolds are 100% customizable on request.
