Specification Table

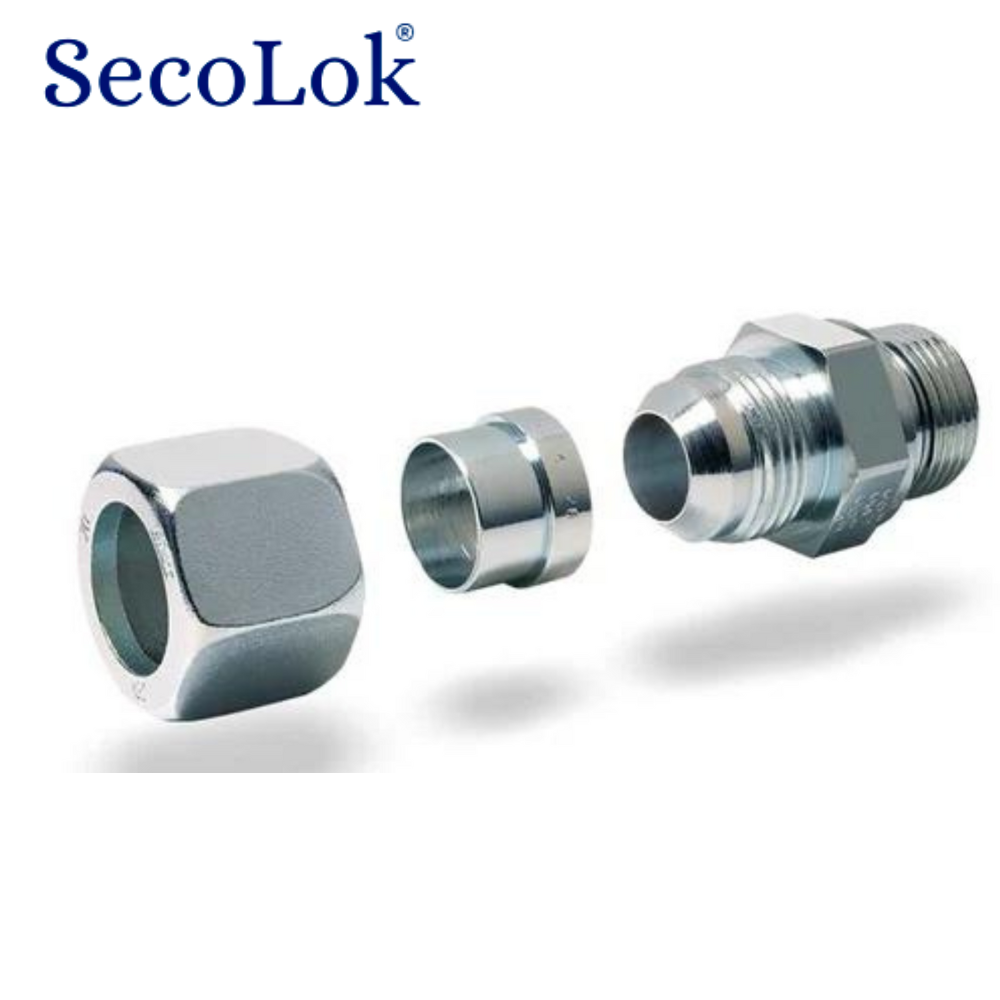

| Characteristic | JIC 37 Degree Flare Fittings |
|---|---|
| Brand | SecoLok |
| Manufacturer | I.S. Engineering Co. |
| Flare angle | 37 degrees |
| Thread type | UNJ/UNJF |
| Pressure rating | Up to 10,000 PSI |
| Temperature rating | -40°F to 400°F (Brass) |
| Metal | Brass, Stainless Steel, Alloy 400 |
| Connection sizes | 1/4″ to 1-1/2″ |
Applications
JIC 37-degree flare fittings are widely used in a variety of applications, including:
They are particularly well-suited for applications where high pressure and vibration resistance are required.
Construction Standards
JIC 37-degree flare fittings are manufactured in accordance with the following construction standards:
These standards ensure that the fittings are of high quality and will meet the performance requirements of the most demanding applications.
Pressure and Temperature Tolerance
JIC 37-degree flare fittings have a pressure rating of up to 10,000 PSI and a temperature rating of -40°F to 400°F for brass fittings. Stainless steel and Alloy 400 fittings have higher temperature ratings.
JIC 37-degree flare fittings typically use Buna-N, Viton, or PTFE packings. Buna-N is a general-purpose packing that is resistant to a wide range of chemicals and fluids. Viton is a high-performance packing that is resistant to high temperatures and aggressive chemicals. PTFE is a non-stick packing that is ideal for applications where cleanliness is critical.
2-Year SecoLock Warranty.
