3-Way Manifold Valve

3-Way Manifold Valve 3-Way Manifold Valve

3-Way Manifold Valve

Enquire now

Description

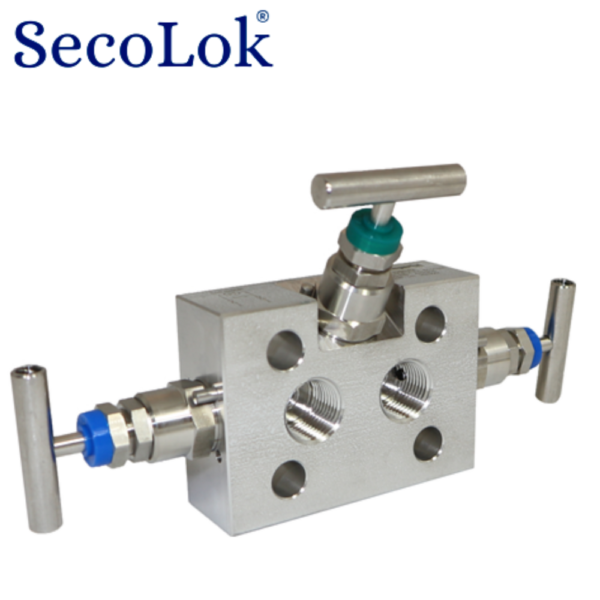

SecoLok 3-Way Manifold Valve

Specification Table

Feature Specification
Brand SecoLok
Introduced by I.S Engineering Co.
Type 3-way manifold valve
Body shape As per end requirements.
Pressure rating 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI
Orifice size 2 mm to 9.5 mm
Medium Temperature (-120°C TO 500°C) RANGE AS PER PRESSURE
Body material Stainless steel 316L, brass, carbon steel
Connection sizes 1/8″ NPT to 2″ NPT
Packing PTFE, graphite, EPDM

Applications

SecoLok 3-way manifold valves are used in a wide range of applications, including:

  • Process control: To isolate and calibrate pressure transmitters, differential pressure transmitters, and other process instruments.
  • Instrumentation: To protect pressure transducers and other instruments from overpressure.
  • HVAC: To control the flow of refrigerant and other fluids in HVAC systems.
  • Oil and gas: To control the flow of oil, gas, and other fluids in oil and gas production and processing facilities.
  • Power generation: To control the flow of steam, water, and other fluids in power generation facilities.

Construction Standards

SecoLok 3-way manifold valves are manufactured in accordance with the following construction standards:

  • ANSI/ASME B16.34
  • MSS SP-75
  • NACE MR0175/MR0103
  • ISO 15156

1-Year SecoLok Warranty

SecoLok 3-way manifold valves are high-quality, versatile valves that can be used in a wide range of applications. They are manufactured in accordance with the highest construction standards and have a wide pressure and temperature tolerance. SecoLok 3-way manifold valves are available in a range of connection sizes and with a variety of packing materials to meet the specific needs of each application.
